Crusher Bearing and Bearing Accessories for Terex Pegson and Terex Finlay Cone Crusher
Crusher Bearing
Product Catalog
2410 series
2415 series
2416 series
| CRUSHER BEARINGS | Basic load ratings | Limiting speeds | ||
| kN | r/min | |||
| Cr | Cor | Grease | Oil | |
| 2416-0139 | 1129 | 1460 | 1100 | 1500 |
| 2416-0164 | – | – | – | – |
| 2416-0417 | 1270 | 1760 | 1000 | 1400 |
| 2416-1520 | 1580 | 2750 | 900 | 1200 |
| 2416-1543 | 1700 | 3200 | 850 | 1100 |
| 2416-1560 | – | – | – | – |
| 2416-1851 | 2620 | 4800 | 430 | 530 |
| 2416-1856N | – | – | – | – |
| 2416-1857N | – | – | – | – |
| 2416-1909 | 637 | 695 | 1800 | 2400 |
| 2416-4472 | 1730 | 2450 | 900 | 1200 |
| 2416-4517 | 2070 | 3450 | 750 | 950 |
2400 series
Other Series
| CRUSHER BEARINGS | Basic load ratings | Limiting speeds | ||
| kN | r/min | |||
| Cr | Cor | Grease | Oil | |
| 540084 | 800 | 2100 | 400 | 500 |
| 548310-N12B | 1085 | 1667 | 2601 | 3060 |
| 561067B | 3810 | 8100 | 430 | 600 |
| 561117 | 3050 | 8000 | 670 | 900 |
| 561290C | 5170 | 10000 | 380 | 500 |
| 561292 | 3200 | 5750 | 320 | 420 |
| 548310-N12B*2 | 2170 | 3334 | 5202 | 6120 |
| 31.12.0247 | 1085 | 1667 | 2601 | 3060 |
Crusher Bearing
Product Gallery

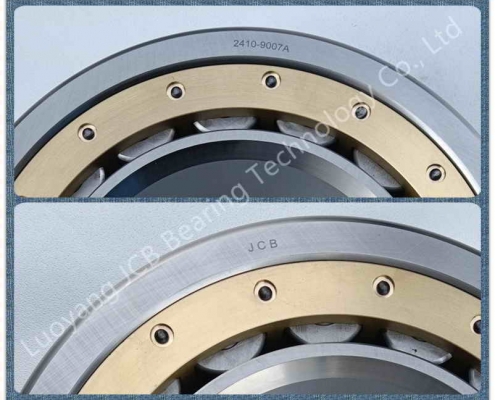

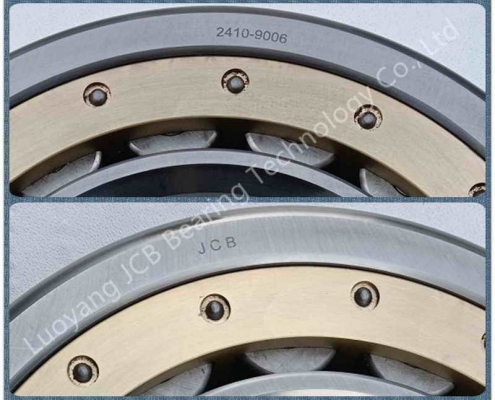

2410-9006
2410-9007

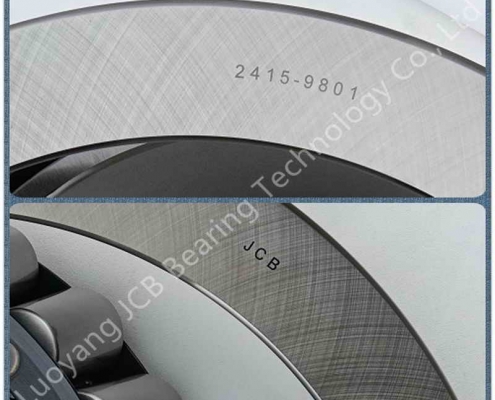

2415-9801

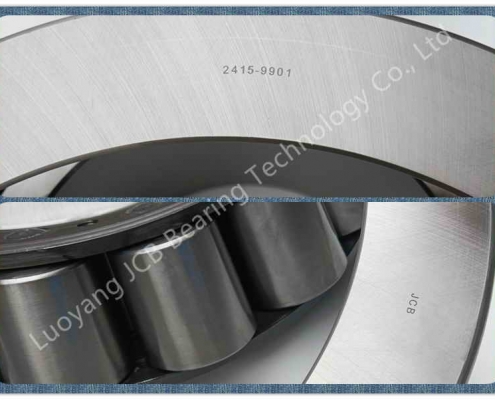

2415-9901
Crusher Bearing
Question & Answer
What Is Crusher Bearing

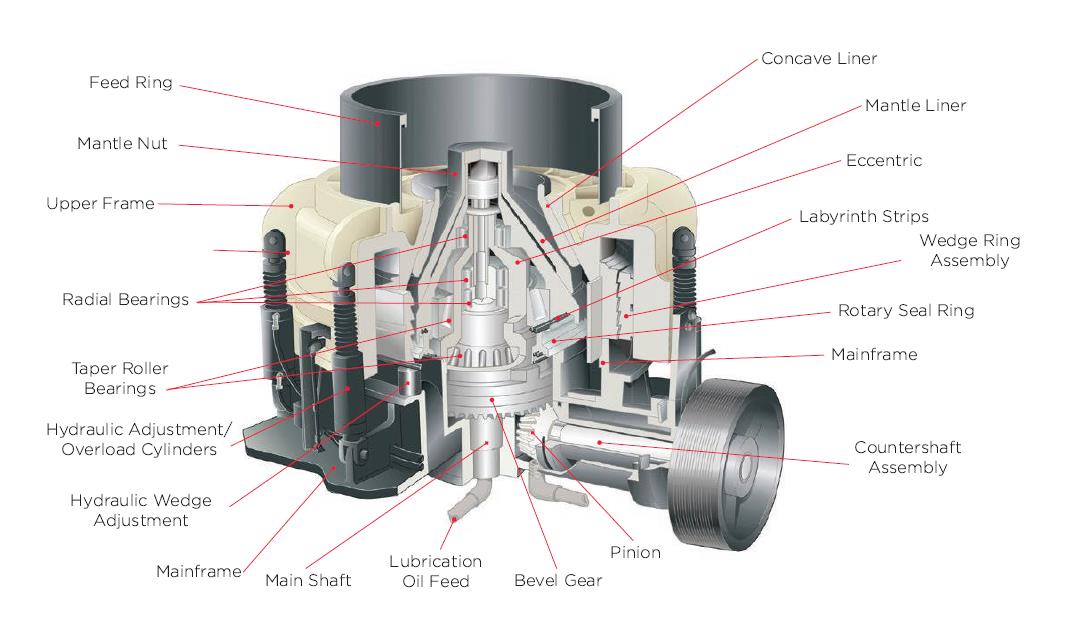

Crusher bearings, as the name implies, these bearings applied to crushers, they are include main shaft system bearings and transmission system bearings inside structure of various crusher.
Crusher Classification:
- Jaw Crusher
- Gyratory Crusher
- Cone Crusher
- Roll Crusher
- Hammer Crusher
- Impact Crusher
Question : What are the special requirements of crusher bearing AND How to meet these special requirements?
1.What are the special requirements of crusher bearing
Special requirements for crusher bearings is, bearings must have good impact resistance, good wear resistance and fatigue resistance, and long service life.
2.How to meet these special requirements?
To meet these special requirements of crusher bearing and improve crusher bearing performance, it should be from two point:
1.Perfect raw material
2.Advanced production technology
Question : What is the difference between crusher bearing and ordinary bearing?
Crusher bearing must have:
The raw materials of crusher bearings should have good mechanical properties。
1.To choose a large bearing clearance.
2.There is good lubrication conditions.
Question : Common Crusher Bearing Failure Forms, How To Identify And Choose Crusher Bearing?
1.Common failure mode of crusher bearing?
1 fatigue
2 wear
3 corrosion
4 Electrocorrosion
5 plastic deformation
6 Fractures and Cracks
Main failure mode is FATIGUE and WEAR
Why is there a problem of crusher bearing wear?
(1) Metal fatigue wear is normal, which is an inherent characteristic of the metal itself.
(2) For the problem of fit relationship, from a microscopic perspective, the metal mating surface can only achieve 30%-50%, so the small stress surface of the mating part is also one of the root causes of metal fatigue and wear.
(3) Installation problems. During the installation process, the installation position of the bearing cannot be well controlled or the clearance of the bearing cannot be effectively controlled, resulting in the failure of the bearing to be in a good state during operation, and then the running resistance increases and the temperature rises. Torque acts more on the mating surface, causing relative movement between the inner ring of the bearing and the shaft surface, resulting in wear of the shaft.
(4) Operation and maintenance, including poor lubrication of bearings, high operating temperature due to blockage of cooling system, loosening of fastening devices, etc.
2.Replacement and maintenance of crusher bearing
During the daily use of the crusher, its maintenance is essential, so what should be done to protect the product and prolong its service life.
Effective lubrication of bearings can prolong their service life and improve work efficiency. Before testing and commissioning, it must be ensured that the crusher bearing lubrication system is intact and effective.
1. Improper lubrication of crusher bearings, use of inferior or impure lubricating oil, excessive lubrication may wear or damage the bearings.
2. In order to ensure the use, the correct type of lubricating oil must be used. The grease brand is No. 3 lithium-based grease (composed of lithium soap and lubricating oil, and does not contain harmful ingredients). The filling amount of grease is generally 1/2-2/3 of the bearing cavity space.
3. If unsuitable lubricating oil is used, too much or insufficient lubricating oil will cause overheating and severe wear.
4. When the grease becomes dirty, dry or aging, it should be replaced in time. Under normal circumstances, the bearing of the crusher must be well lubricated, and the grease must be added after 3000 hours of operation.
2. Inject lubricating oil,the lubricating oil of the crusher bearing can be added through the oil nozzle and enter the bearing through the circulation hole.
3. Replace lubricating oil, when the bearing is hot and noisy, the bearing lubricating oil needs to be replaced.
3.The main reasons for the broken bearing of the crusher are as follows:
1. First of all, lubrication is the key
The lubricating grease in the bearing should not be too much. If the amount of grease added is too large, the friction torque will increase and the bearing temperature will rise. If the amount of grease added is too small, reliable lubrication cannot be obtained and dry friction occurs. The appropriate amount of grease is 1/3~1/2 of the total void volume in the bearing. Therefore, an appropriate amount of grease should be injected regularly according to the requirements of use.
Proper lubrication and regular maintenance can avoid bearing damage caused by lubrication problems. To ensure reasonable lubrication should be done:
1) Follow the usage guidelines set by the device manufacturer for each device;
2) When adding grease, it should be filled between the rolling parts of the bearing and the shell (or retainer) to ensure that a sufficient amount of grease enters and the surface of the key raceway is fully lubricated;
3) Attention should be paid to when the bearing should be greased;
4) Monitor the indicating instruments of the equipment for early detection of signs of problems, such as temperature fluctuations and/or abnormally high temperatures;
5) Pay attention to equipment noise or abnormal vibration;
6) Observe lubricating oil leakage;
7) Regularly sample the lubricating oil and check for contamination.
2. Secondly, the gap problem
Be sure to choose the correct clearance C3 and C4 or other clearances. If the clearance is wrong, even the best bearings will be damaged. In the use of the crusher, due to the failure of the transmission device of the user, in order not to affect the production, it is necessary to replace the short shaft assembly (the test run has been completed). However, sometimes it runs for less than 10 minutes, and the temperature of the short shaft bearing rises sharply, locking the short shaft to death.
3. Improper assembly
Check whether the installation of the equipment is stable or unstable, the condition of the motor, and whether there is any problem with the internal accessories. When the machine is assembled, if the outer ring of the bearing and the housing hole or the inner ring of the bearing and the shaft are improperly matched, the bearing will be locked.
4. Oil seal problem
Due to the harsh working environment of the machine, a large amount of dust, burrs and other pollutants will be produced during work, which will cause problems in the quality of the oil seal, which will cause dry friction and damage to the oil seal, and cause the temperature of the bearing to rise too high in a short time. At this time, it is necessary to replace the oil seal and then conduct a test run, which can solve this situation.
5. Improper control of bearing heating temperature
When the temperature of the bearing heater is too high during the heating operation, it will cause tempering and reduce the hardness and precision, so that the temperature of the bearing will increase, causing the bearing to aggravate wear and damage, resulting in a locking phenomenon.
6. Quality problems of bearings
The grooves of the bearings are worn or rusted, the lubrication fails, the screws are loose, and gaps appear. Therefore, during operation, materials will also enter the phenomenon. The solution we need to take to this problem is to tighten the screws.
Question : The Production Status And Development Prospect Of Crusher Bearing In The World.
1. Production Status
2. Production Status
Growing demand due to mining and infrastructure expansion.
IoT-enabled smart bearings are emerging, reducing maintenance costs.
Increasing competition from low-cost manufacturers, while high-end markets remain dominated by European, Japanese, and U.S. companies.
Overall, the crusher bearing industry is moving towards high performance, intelligence, and customization, with technological innovation being the key driver.
